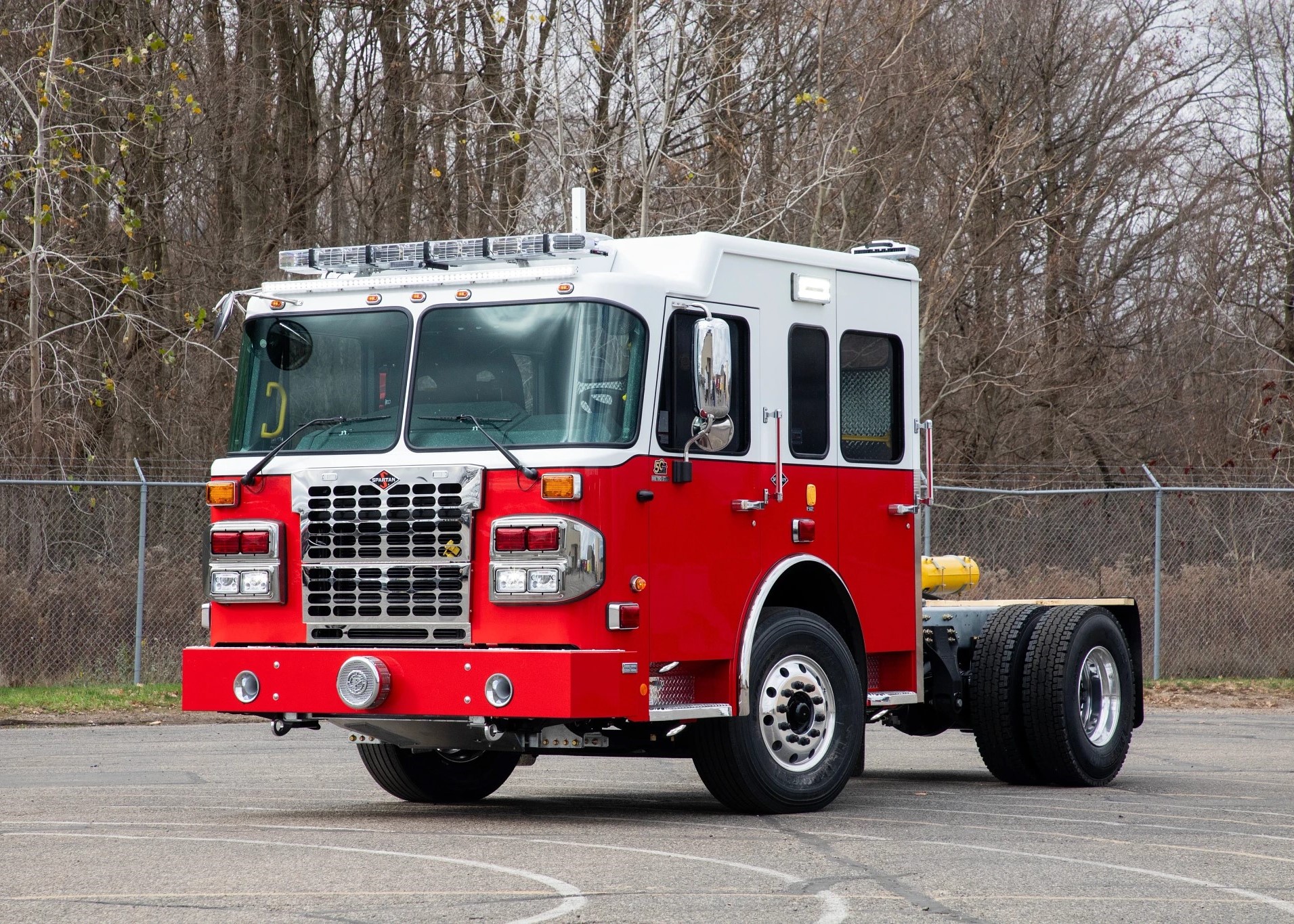

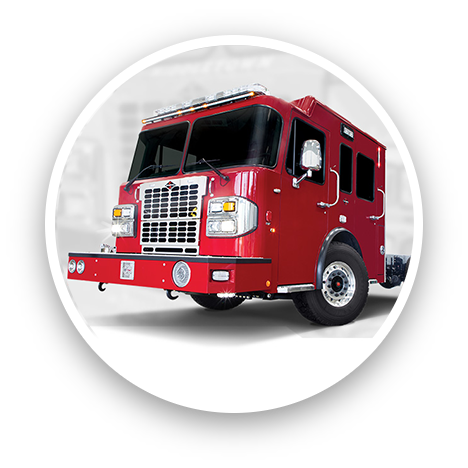

Metro Star®
The Spartan Metro Star features a compact 94" wide cab that is configured with an extensive range of options, designed to navigate in congested city streets and narrow rural roads. Easily accommodate your crew, equipment and storage needs with numerous cab style and roofline options. Spartan’s flexible design puts you in the driver’s seat to satisfy not only your cab and chassis needs, but your budget as well.
Performance Stats
- Available in LTD, SMFD, MFD, EMFD, LFD, LLFD and ELFD Cab Styles
- Cab Roof Styles: Flat, Raised (5", 10", 20" or 24")
- 94"-wide Aluminum Cab
- 360-450 HP
- 1,150-1,650 ft.-lb. Torque
- 42˚-53˚ Cramp Angle
- 270-360 Amp Alternator
- 143"-303.5" Wheelbase
- EZ-Trac AWD System Available
- Front Suspension: Multi-Leaf Spring, Parabolic and IFS
- Front GAWR: 18,000-24,000 lbs.
- Rear Suspension: Spring, Rubber Block or Air
- Rear Axle: Single or Tandem
- Rear GAWR: 24,000-58,000 lbs.
- Galvanized Frame Rails Standard
Features and Benefits

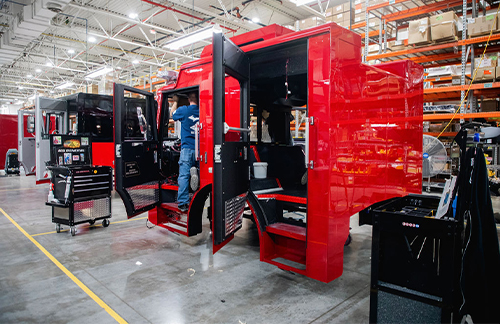

Compact Cab Design
The Metro Star cab offers the most room in a compact design—available with ergonomic designs for improved visibility, maximized storage, comfort and safety.

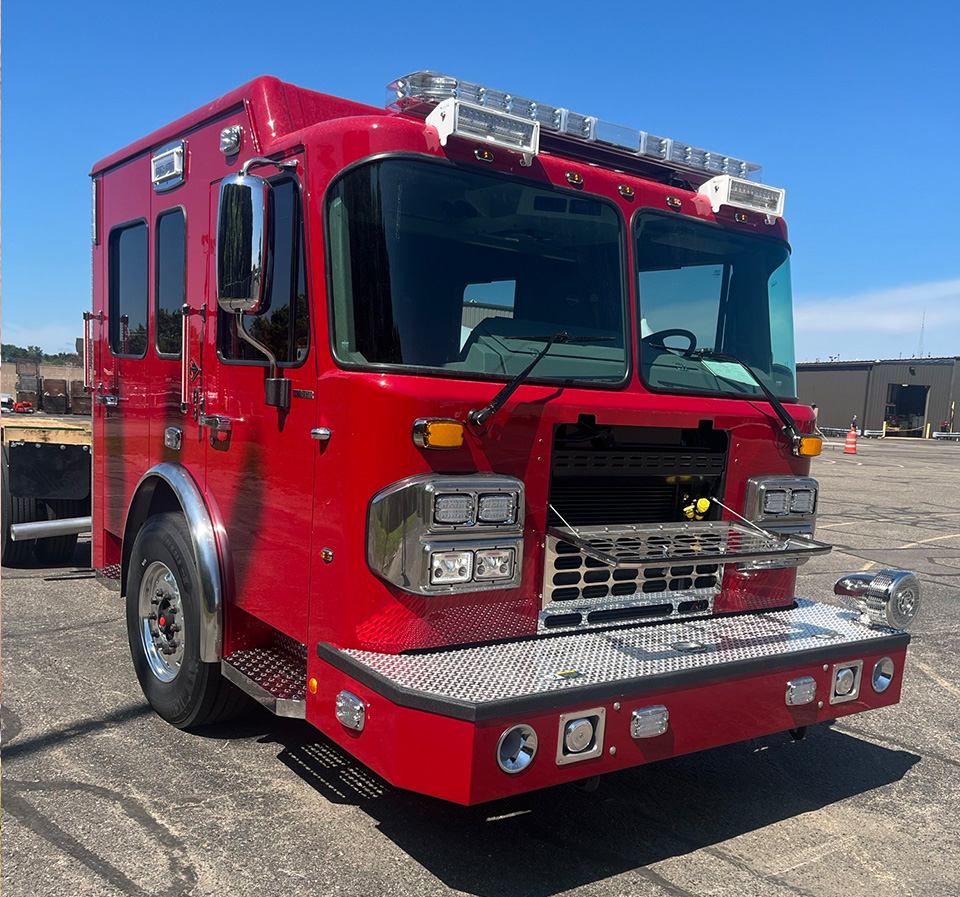

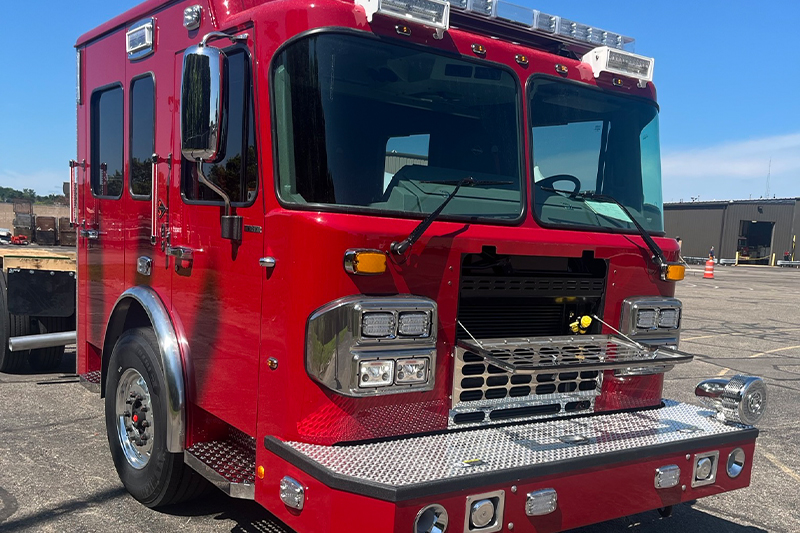

Oil Fill and Checks
Spartan pioneered the tilt grille for checking oil fluids, without having to tilt the cab.

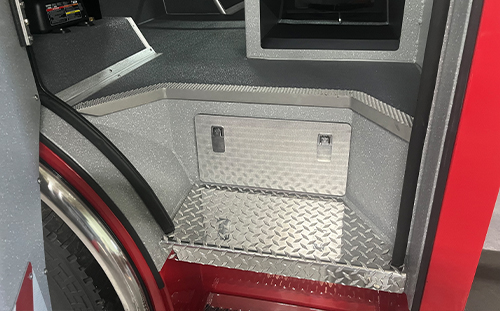

Safer Entry and Egress
Contains the industry’s largest cab steps, lowest step height and tallest, widest cab doors, allowing for safe and efficient entry/egress.

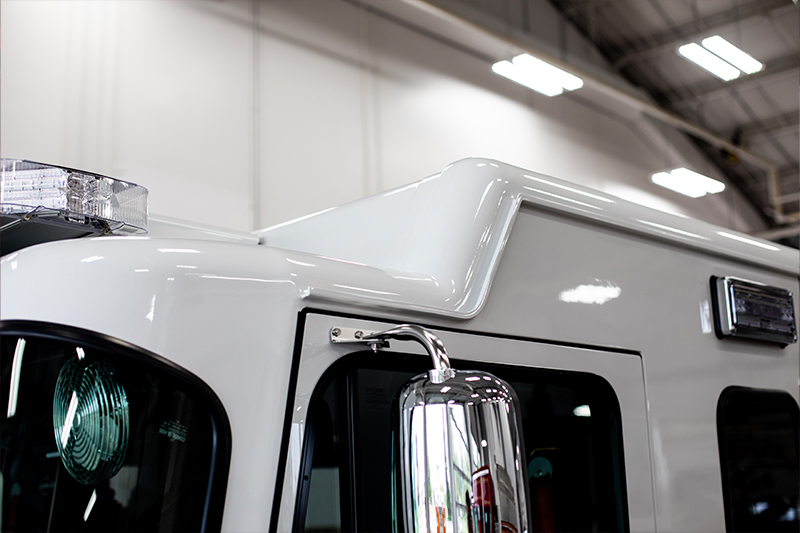

Forward Cab Roof Design
All raised-roof applications include forward-roof protection that extends over the driver and officer seating, offering more headroom and better line of sight.
High Air Intake
Spartan’s heavy-duty high air intake mitigates the risk with fewer connections and places the air filter and ember separator above the radiator and turbo connection. Air filter replacement can be done easily with basic tools and without compromising the clean side of the intake system.
Galvanized Frame Rails
Hot-dipped galvanized C-channels are standard with an optional full galvanized frame option for long-lasting strength and protection.
Nine-Step Paint Process
Spartan Fire Chassis utilizes a meticulous nine-step base coat and clear-coat paint process to deliver a superior, high-gloss finish that ensures long-lasting protection and a flawless appearance.
